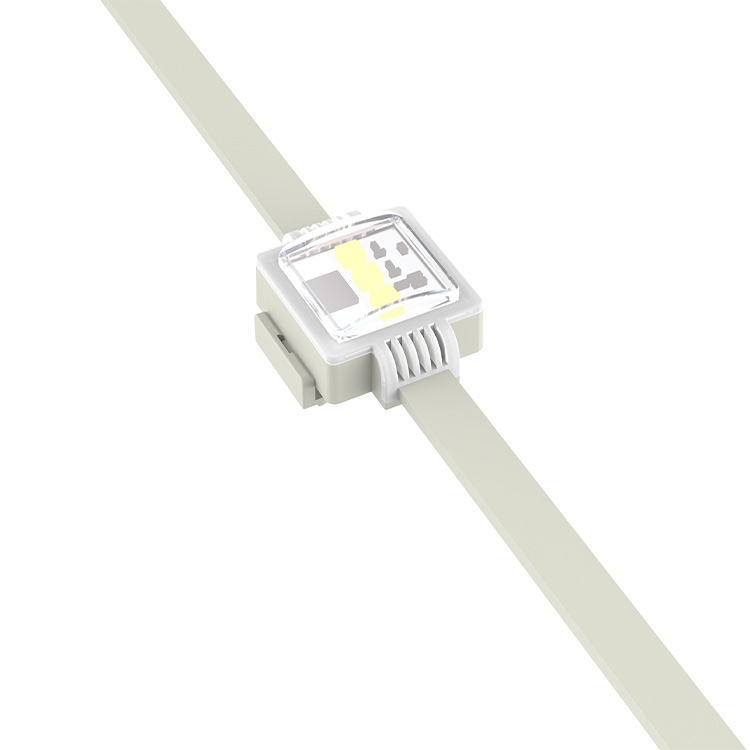

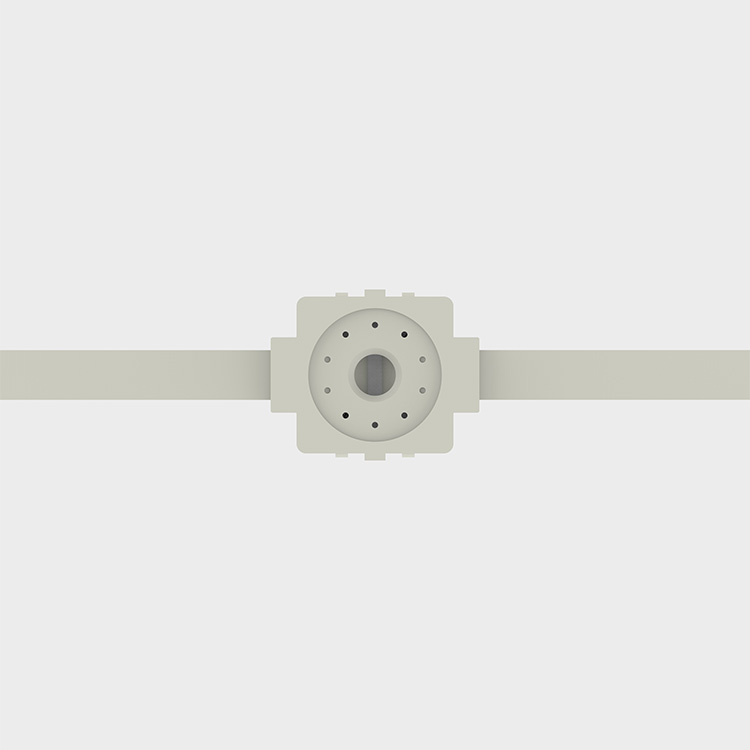

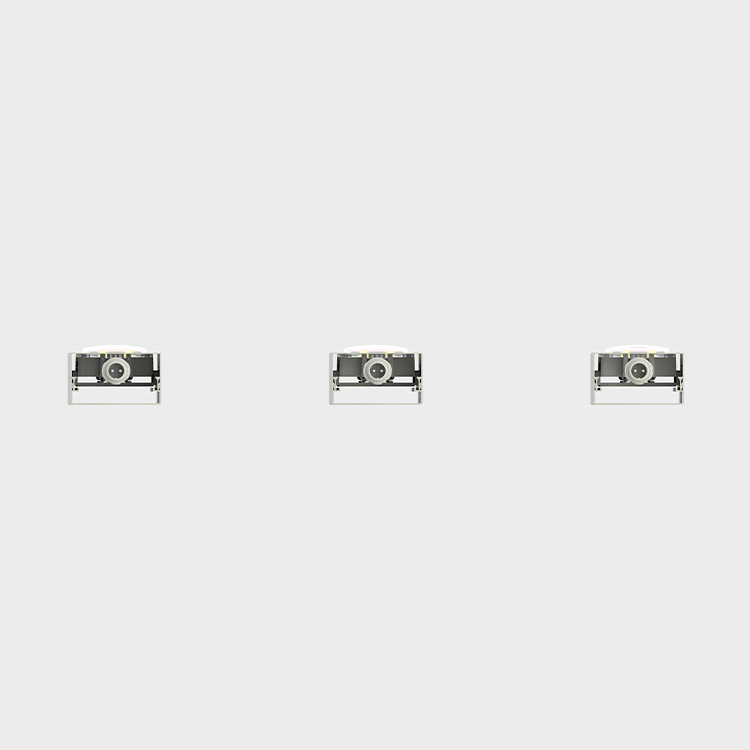

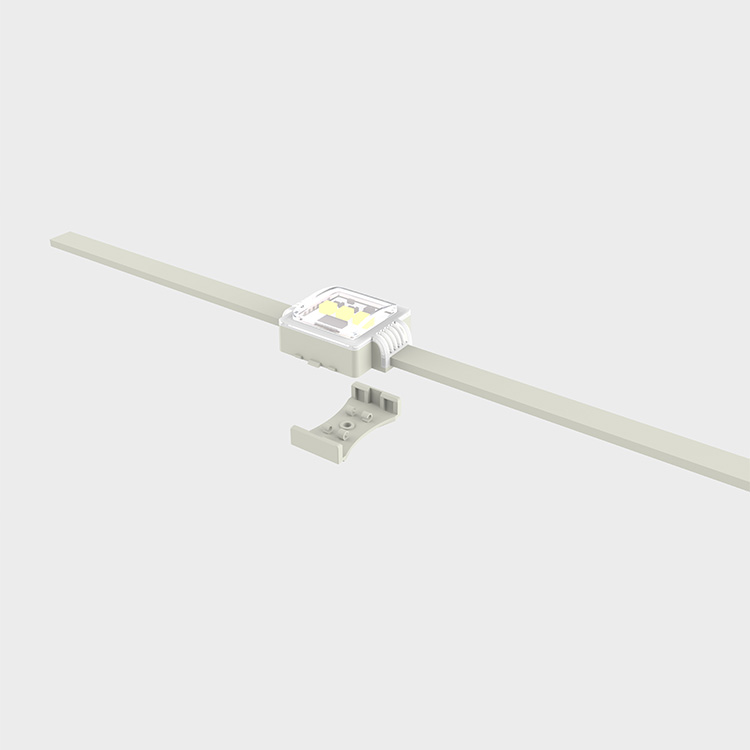

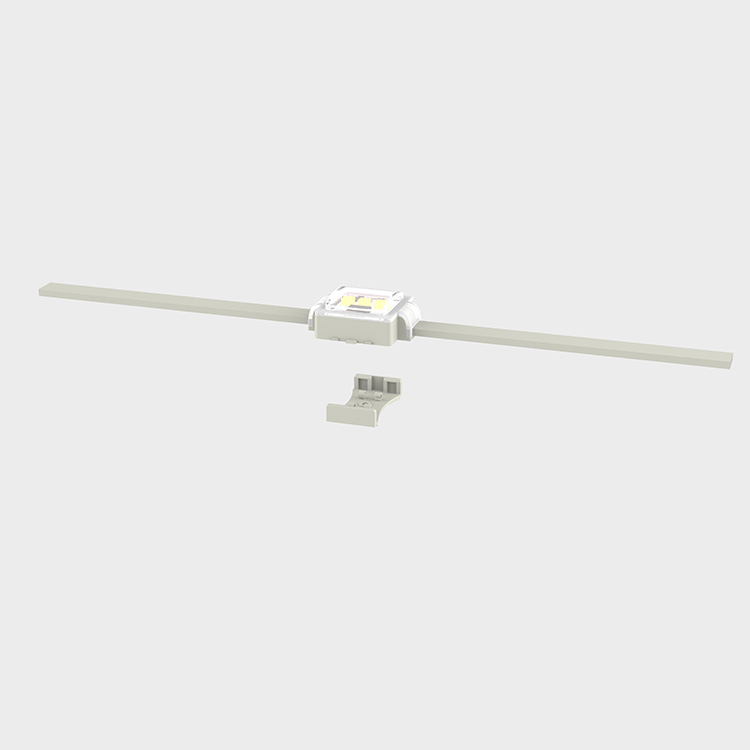

CZL-FD1 LED Pixel Light

Material: German Bayer PC – high transparency, flame retardant, UV resistant. Transparent cover: 93% transmittance; diffused cover: >88%. No yellowing, cracking, or fading.

Light Distribution: Original multi-chip LEDs – high CRI, high brightness. 10-step optical design with PC cover.

Performance: Imported capacitors, American TI chips, plus heat sink and thermoelectric separation design for stability and long life.

Waterproofing: Crane's patent-like design – no front-side potting. Rear fully potted with silicone, dual-layer structure, IP65 rated.

Send Inquiry

Download PDF File

Product Details

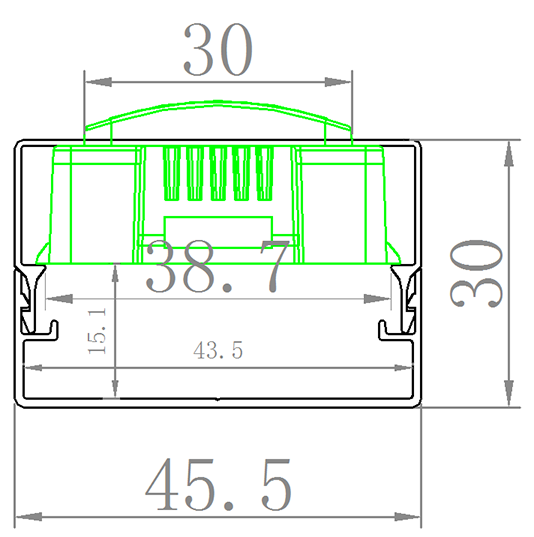

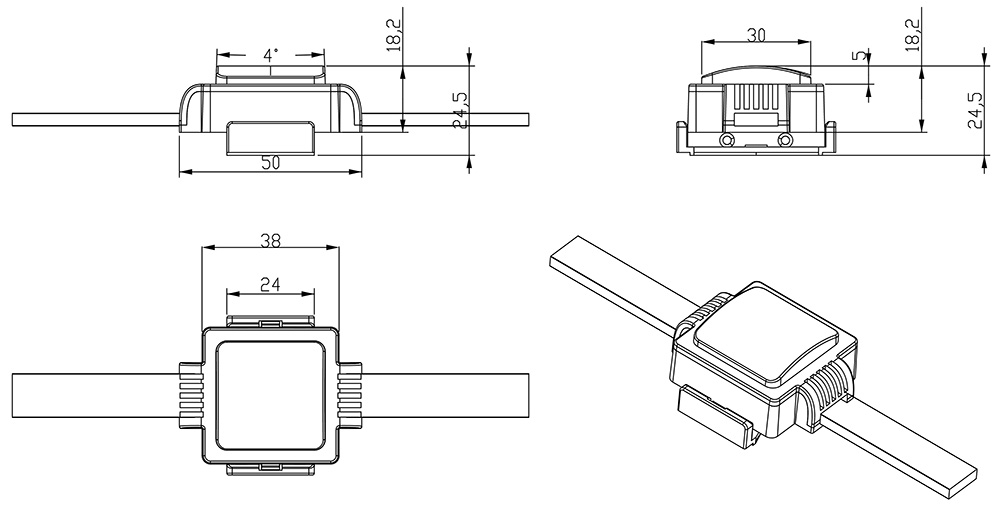

Size: L38*W38*H18MM

Input voltage: DC12V

Rated power: 1W

Light source: 1W/3PCS LED

LED lifespan: >20000h

Color temperature: 1800-6500K/R/G/B/W/RGB/RGBW

Angle: 120°

Control mode: Standard DMX512

Protection level: IP65

Operating temperature: -20℃~45℃

Net weight: 20G
