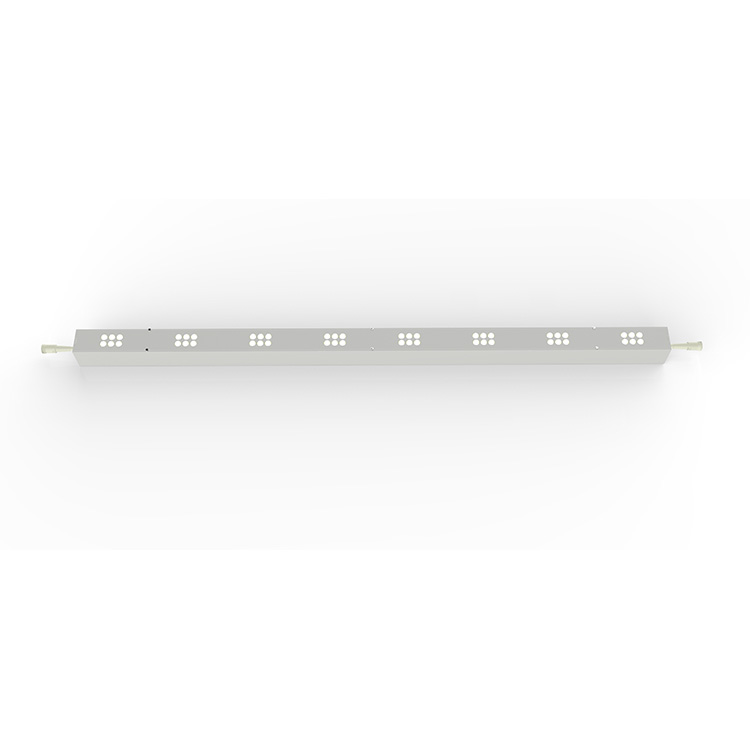

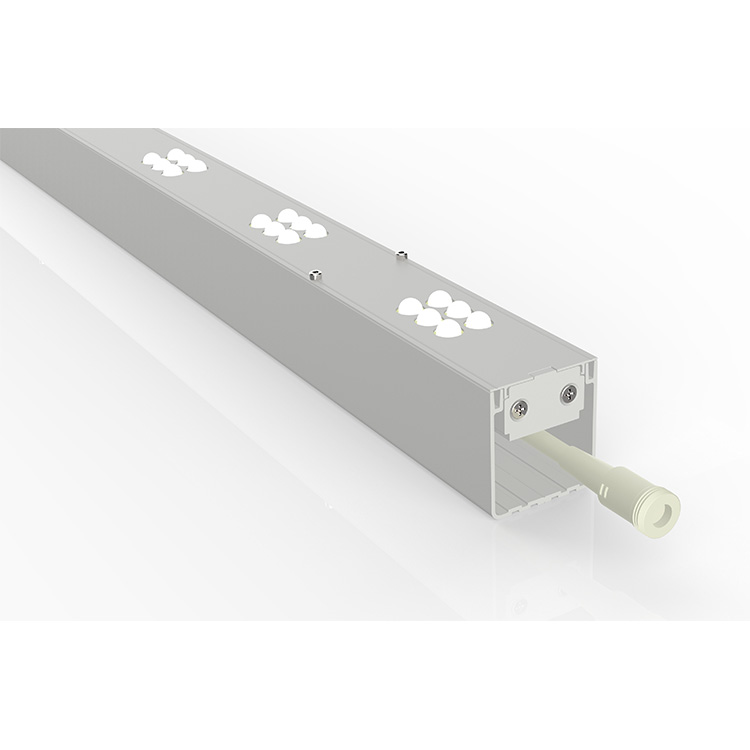

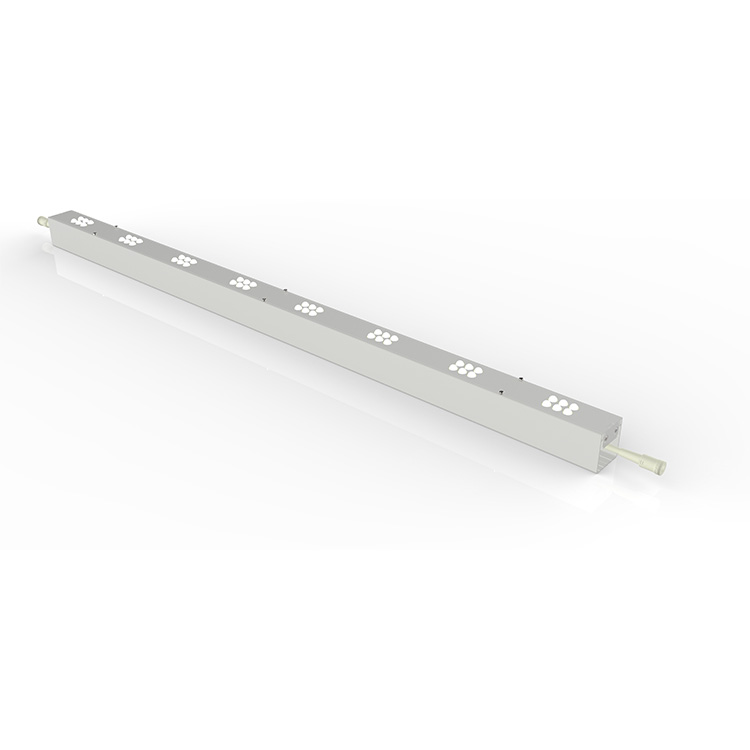

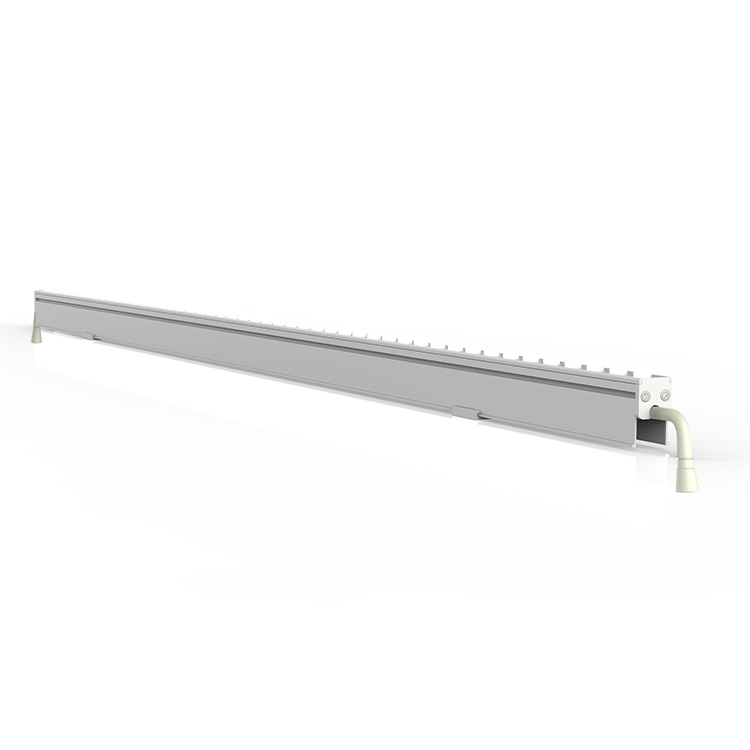

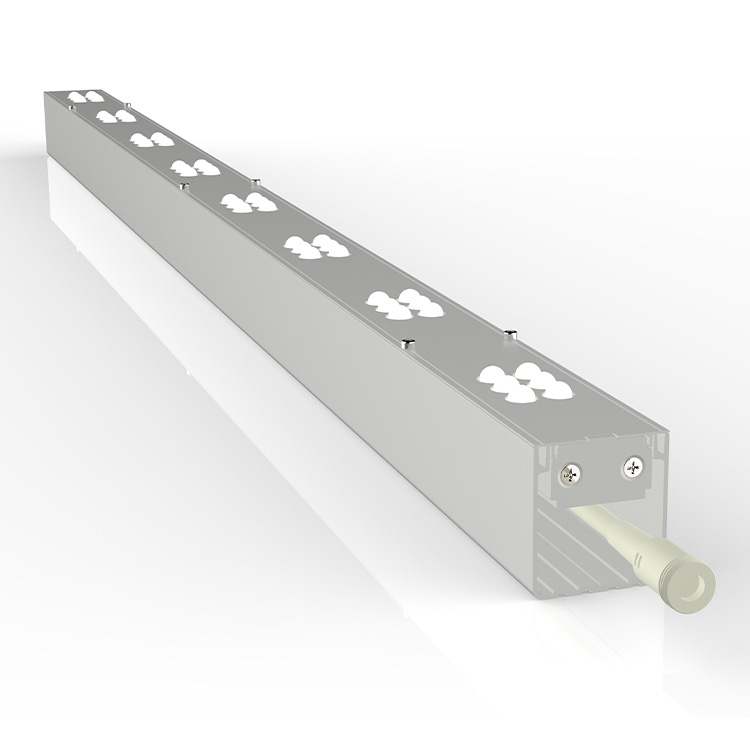

CAL-XSD12 Pixel Linear Light

Material: High-density die-cast aluminum lamp body with a thermal conductivity of up to 230W/mxK, and imported PC light-transmitting cover. The surface is treated with anodic oxidation and sandblasting process.

Light distribution: The luminaire is equipped with original imported light-emitting diodes, featuring high color rendering and high brightness, with a one-time optical light distribution design.

Performance: Imported electronic components such as Japanese Taiyou capacitors and American TI chips are selected to ensure the performance of the lamp. A heat sink is added to the bottom, and a thermally separated design is adopted to enhance the stability of the electrical performance and the service life of the lamp
Send Inquiry
Product Details

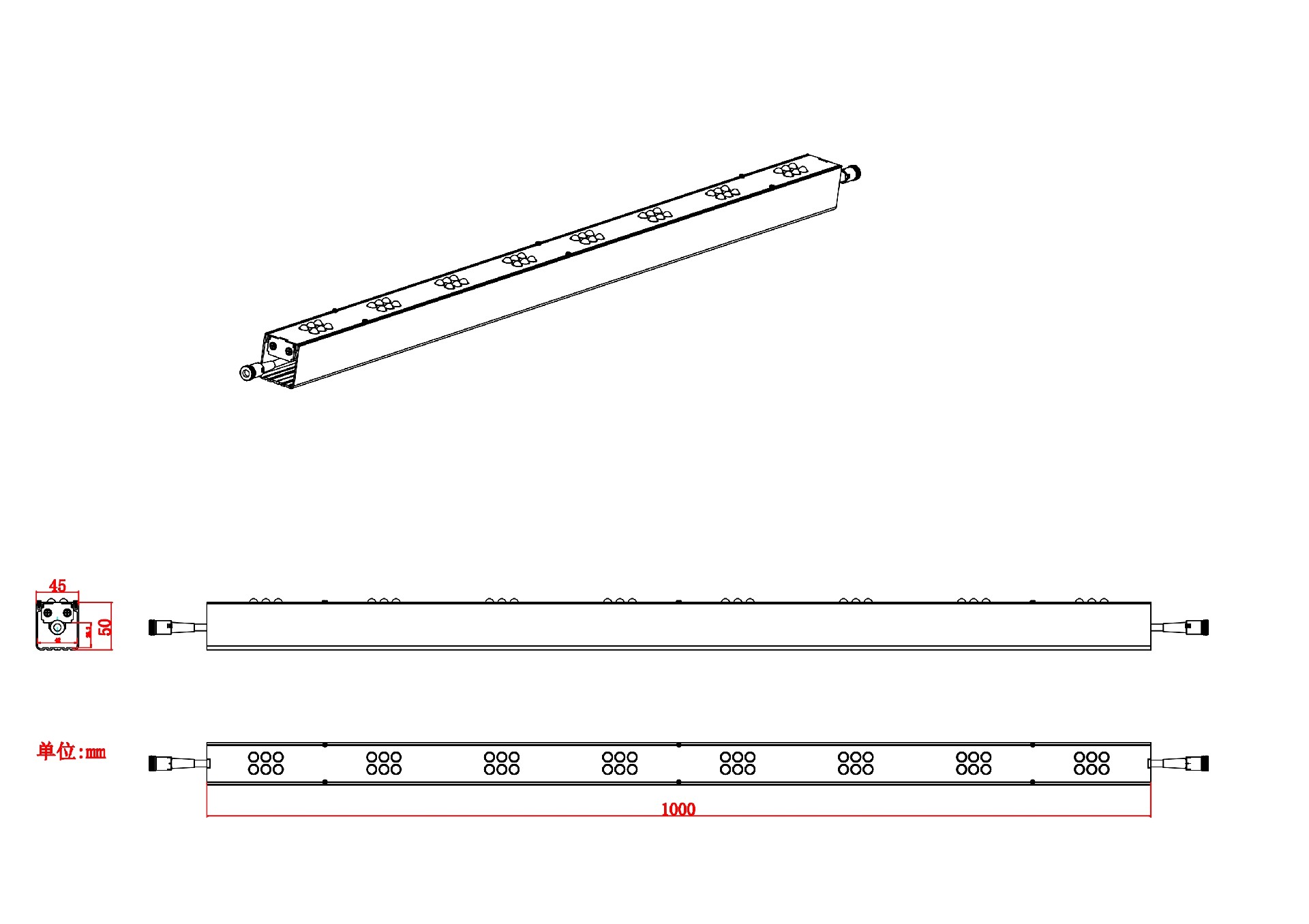

Size: L1000*W45*H50MM

Input voltage: DC24V

Rated power: 12W

Light source: 48PCS LED

LED lifespan: >20000h

Color temperature: 1800-6500K/R/G/B/W/RGB/RGBW

Angle: 120°

Control mode: Standard DMX512  OFF/ON

Protection level: IP65

Operating temperature:  -20℃~45℃

Net weight: 0.6KG
